Support Wi-Fi6 wireless protocol
Equipped with 1GHz high-end chip, 256M flash memory + 128M memory
Full Gigabit port to enjoy Gigabit Internet speed, 1800Mbps wireless dual-band signal
Support one-click MESH networking, whole house Wi-Fi, seamless roaming
| Product model | POWER 10AX （WiFi6） |
| Product model | IEEE802.11 b/g/n/ac/ax |
| Port |

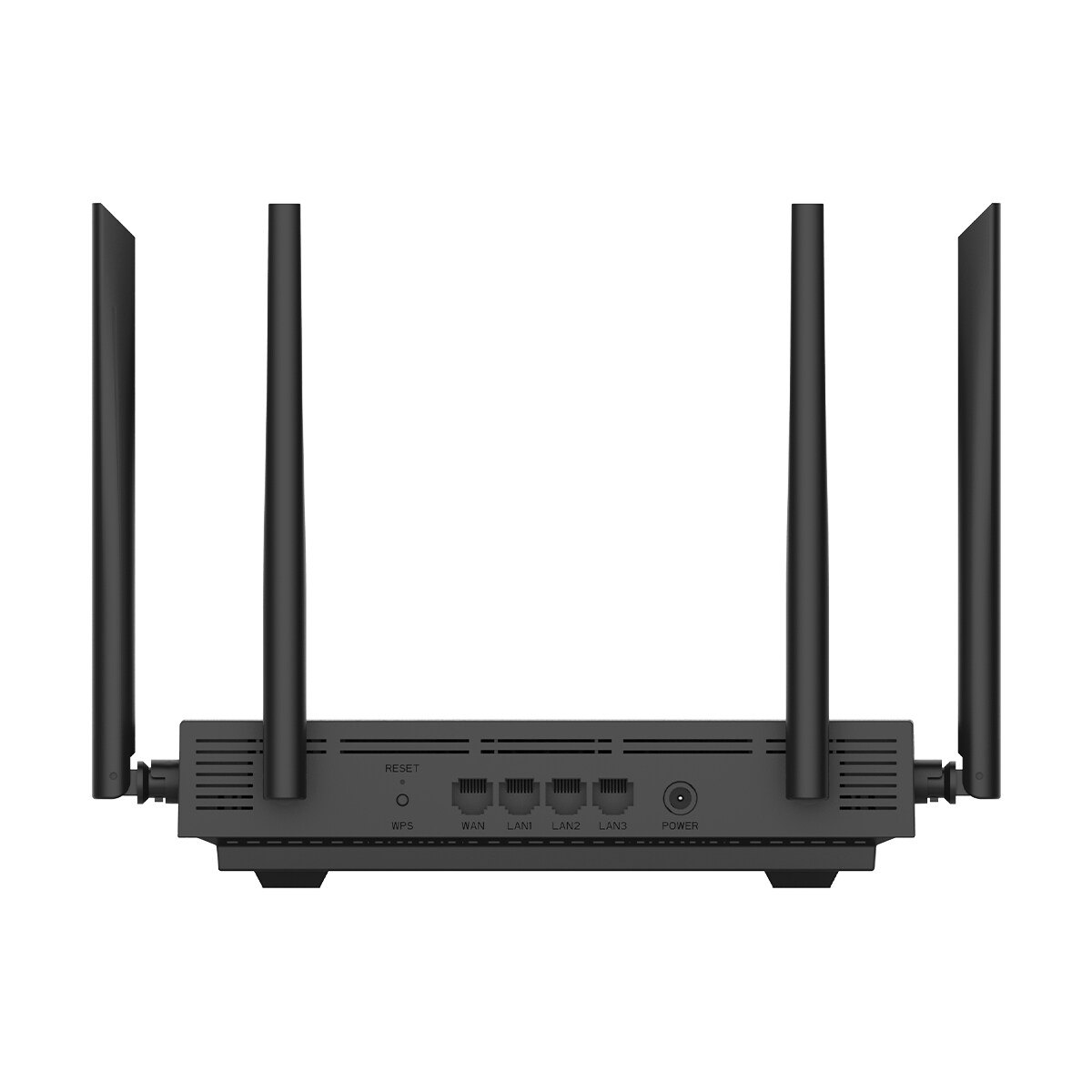

One 10/100/1000M adaptive WAN port
Three 10/100/1000M adaptive LAN port |
| Forwarding rate | 10/100/1000Mbps |
| Wireless specifications | 2.4G band: 574Mbps; 5G band: 1201Mbps |
| Antenna | 6 high-gain omnidirectional antennas |
| CPU | 1GHZ (dual core) |
| RAM | 256MB（Internally packaged in the main IC） |
| ROM | 128MB |
| Button | default×1 |
| LED indicator | PWR、Internet、WIFI、LAN1、LAN2、LAN3、WAN |
| Mesh button | WPS×1 |
| Dimensions | 236mm×144mm×50mm |
| Power supply | 12V/1A |
| Operating environment | Operating temperature: 0°C ~ 40°C Storage temperature: -20°C ~ 70°C Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing |
| Common functions | Quick configuration One key speed test Troubleshooting Internet settings Wi-Fi settings Signal conditioning Internet-connected devices Guest network Intranet settings IPV6 mesh networking Wireless relay IPTV Port mapping |
| Security | Malicious URL firewall Internet hijacking firewall Wi-Fi squatter firewall Blacklist management |
| Basic settings |
System upgrade |
| Others | Emergency recovery Mobile web |
