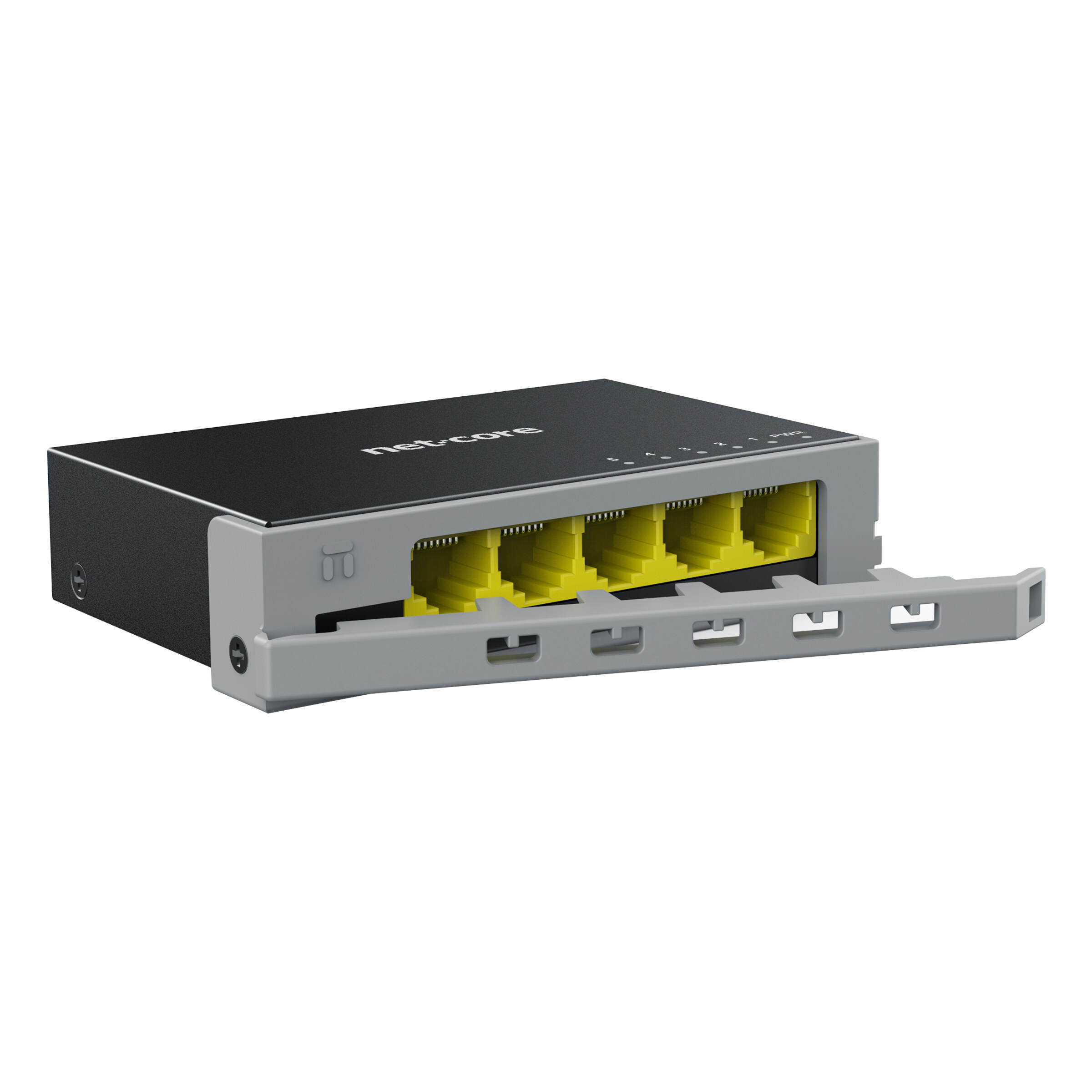

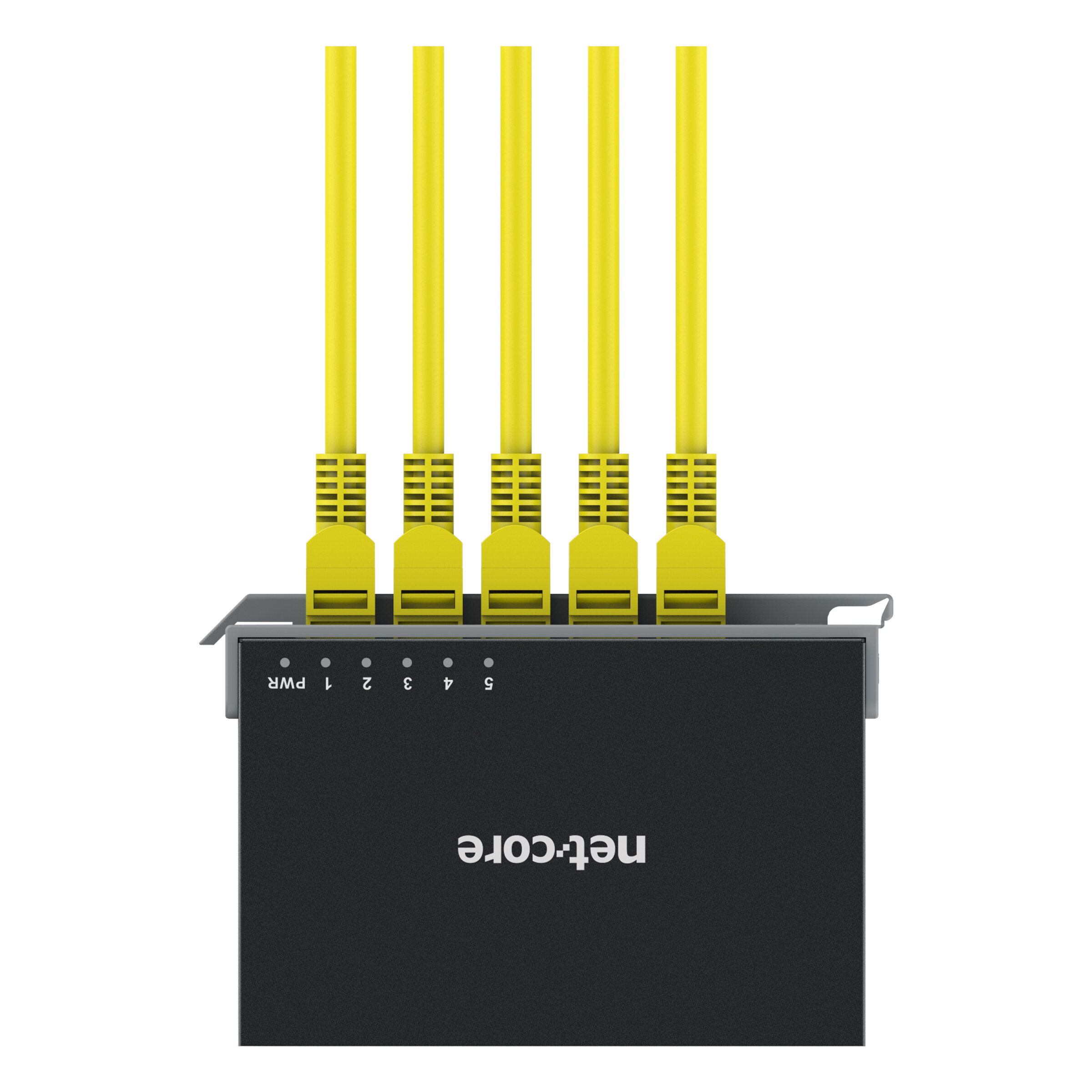

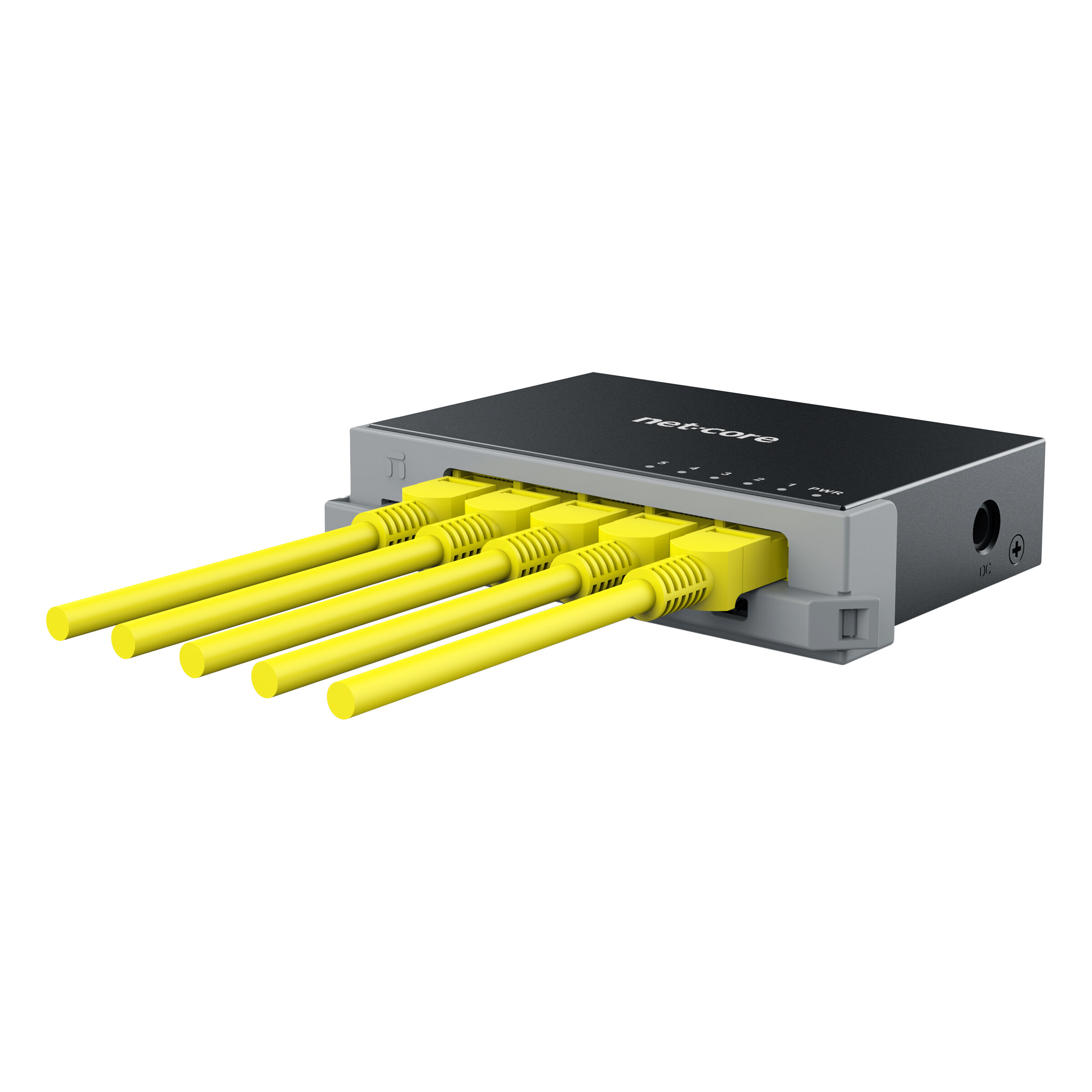

NS315

5 port iron shell Gigabit switch dedicated for surveillance/networking

-5*10/100/1000M adaptive RJ45 ports

-Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standard, IEEE802.3ab Gigabit Ethernet standard

-Support full-/half-duplex working mode

-Plug and play, flexible adapt to various scenarios

  • 1
  • 2
  • 4
  • 3
1
2
4
3

Product parameters

Product Hardware Specifications

Product model

NS315
Standard protocol IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Network medium

10Base-T: CAT3 or above UTP

100Base-TX: CAT5 or above UTP

1000Base-TX: CAT5e or above UTP

Port 5*10/100/1000M RJ45 LAN port
Backplane bandwidth

10Gbps

MAC address table 2K
Size 100×65×22.55mm
LED display 10/100/1000Mbps(LINK/ACT)、Power
Forwarding mode Store and forward
Access method CSMA/CD
Power 5V/600mA
Working environment

Operating temperature: 0°C ~ 40°C

Storage temperature: -20°C ~ 70°C

Operating humidity: 10% ~ 90%, RH  non-condensing

Storage humidity: 5% ~ 90%, RH non-condensing
