网是科技(netcore磊科)

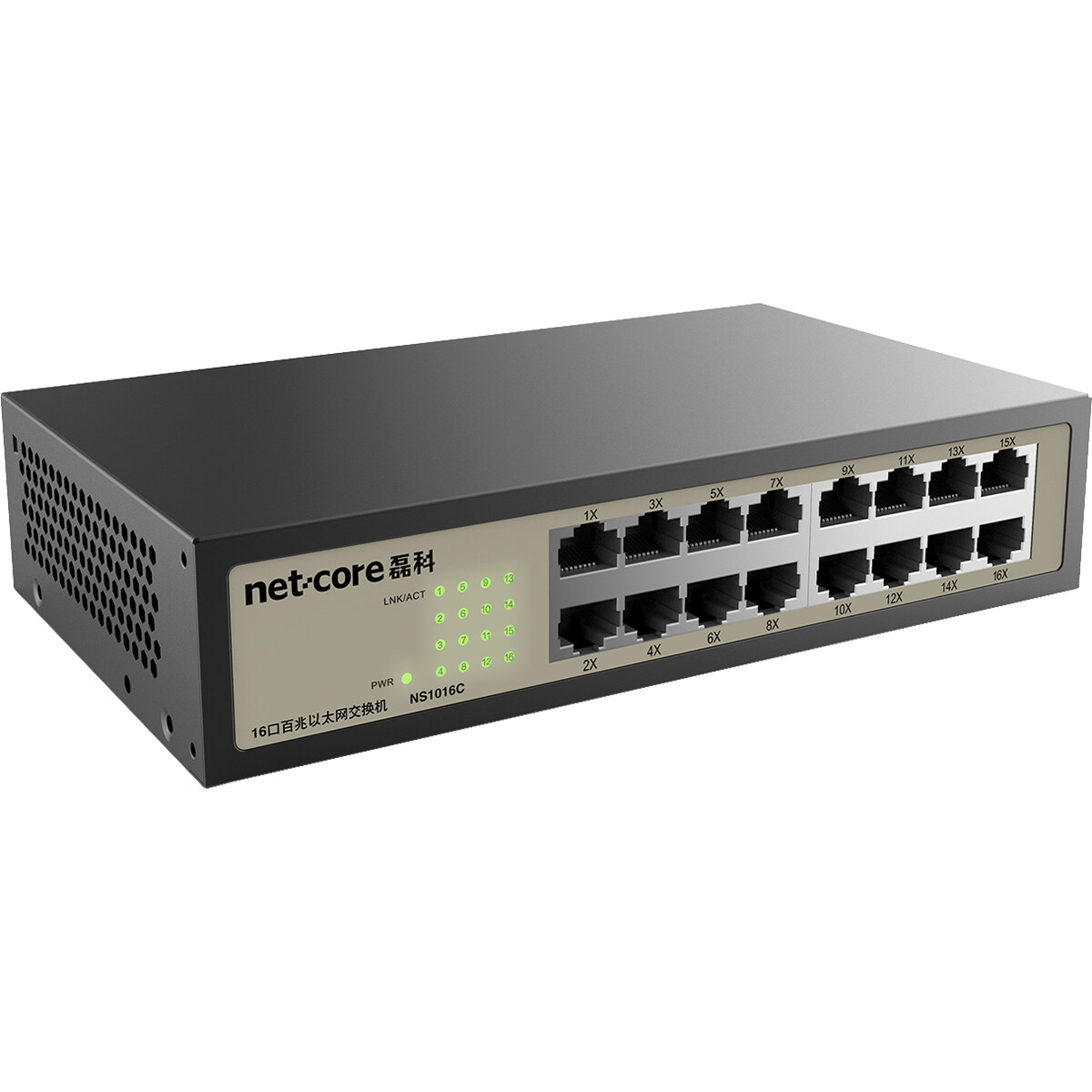

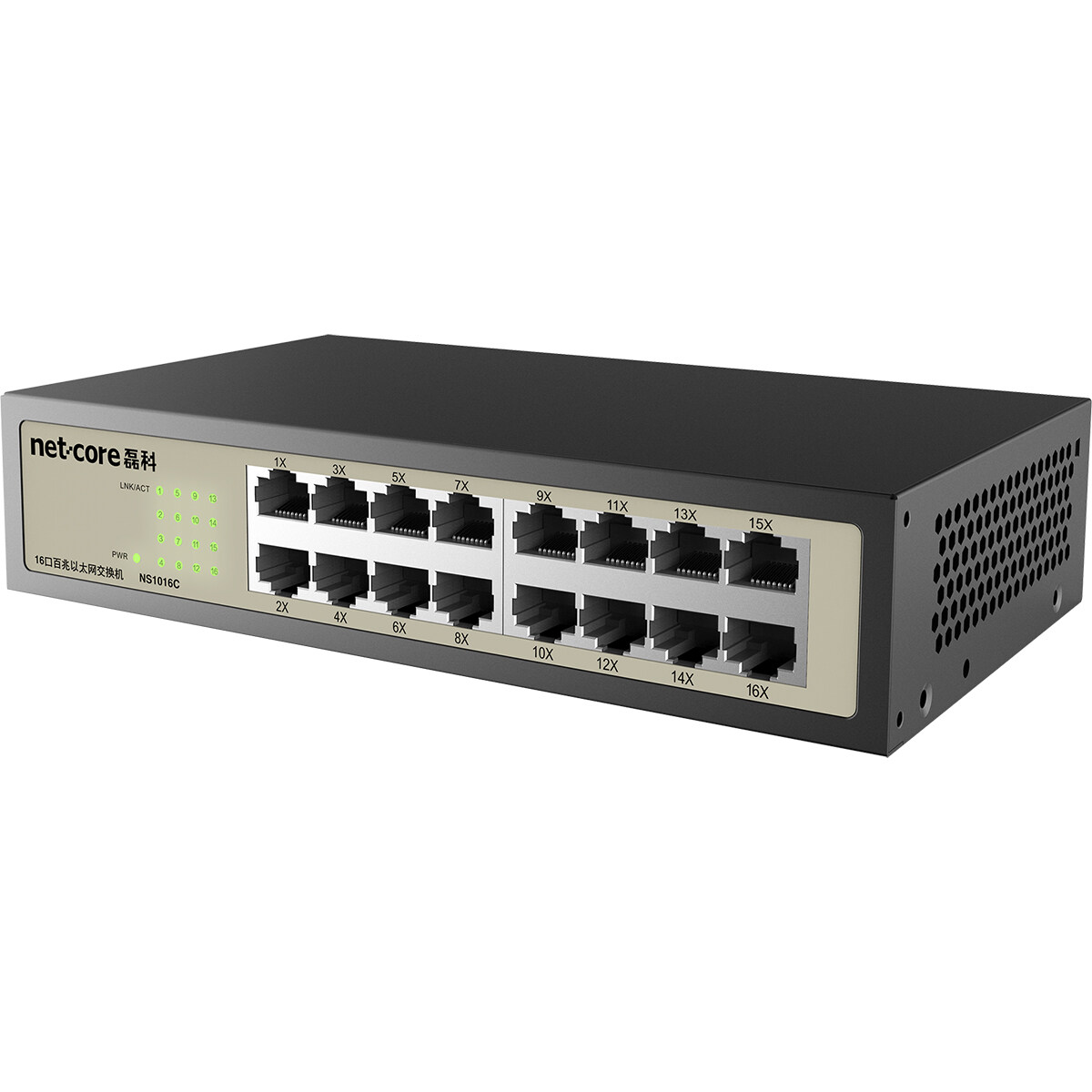

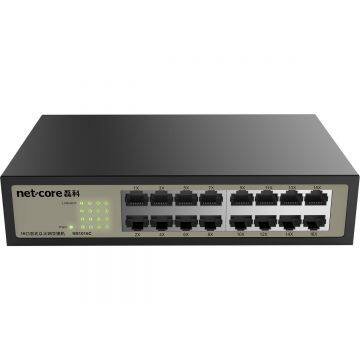

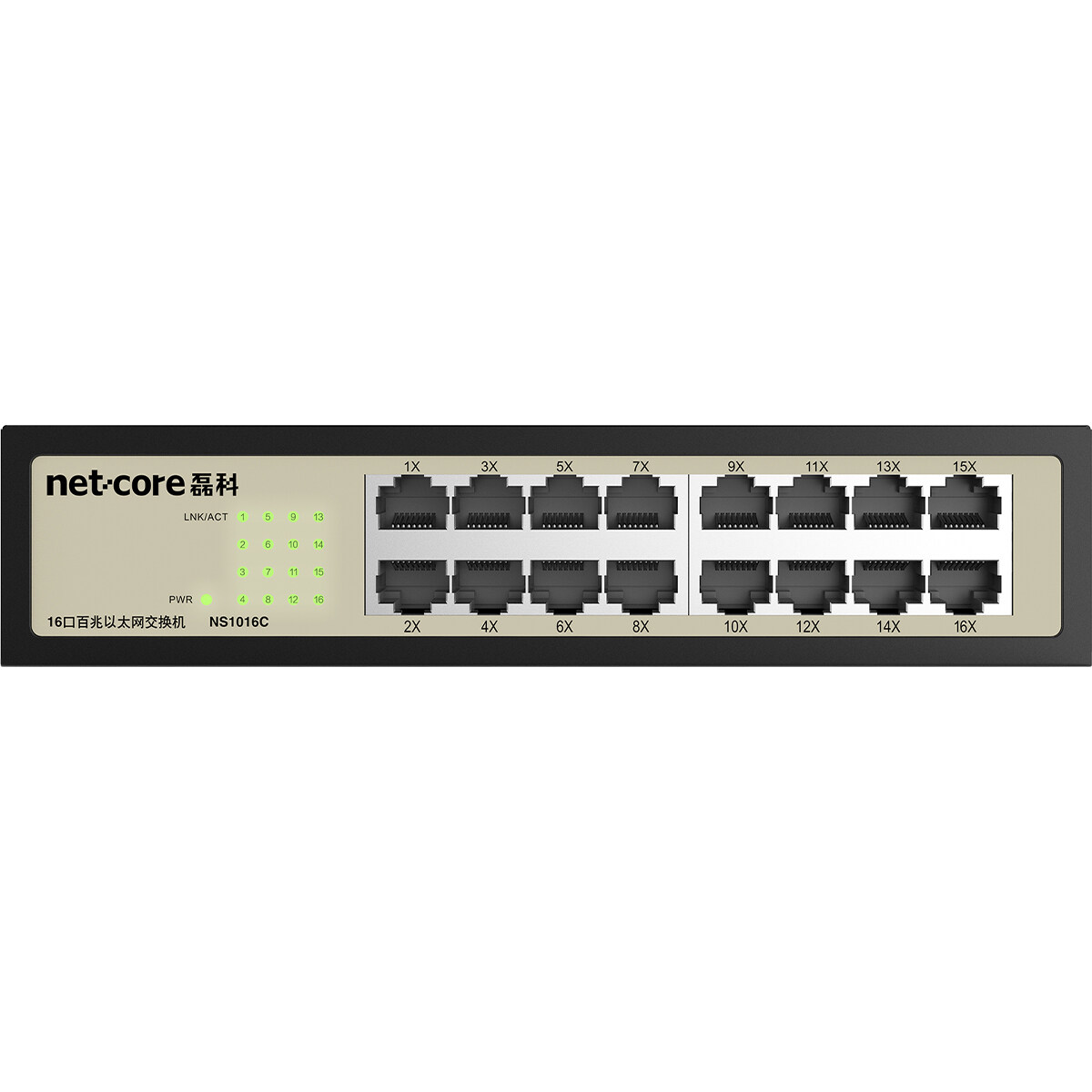

NS1016C

16FE Fast Ethernet desktop switch

-Follow IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x Ethernet protocol standards

-16x10/100Mbps adaptive ports, to meet multi-scenario use

-Each port supports full-/half-duplex working mode

-Adapt to desktop and rack weak current boxes, unrestricted deployment

-Automatic address learning and aging, 8K MAC address table

-8-core metal shielded port, stable transmission without packet loss

  • 1
  • 2
  • 3
  • 4
1
2
3
4

Product parameters

Product Hardware Specifications

Product model NS1016C
Standard protocol IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3x
Port

16*10/100M RJ45 LAN Port

Forwarding rate 10/100Mbps
Store and forward Support
Backplane bandwidth 3.2G
MAC address table 8K
Size 200mm(L)×118mm(W)×44mm(H)
LED display PWR、16LAN LINK
Working environment

Operating temperature: 0°C ~ 40°C

Storage temperature: -40°C ~ 70°C

Operating humidity: 10% ~ 90%, RH  non-condensing

Storage humidity: 5% ~ 90%, RH non-condensing

Power 9V/500mA
Weight 560g
